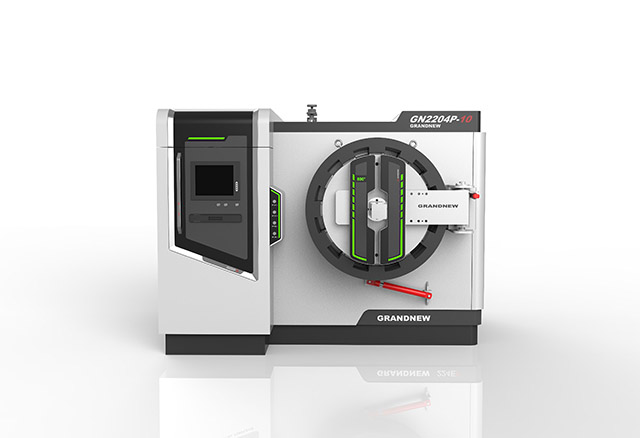

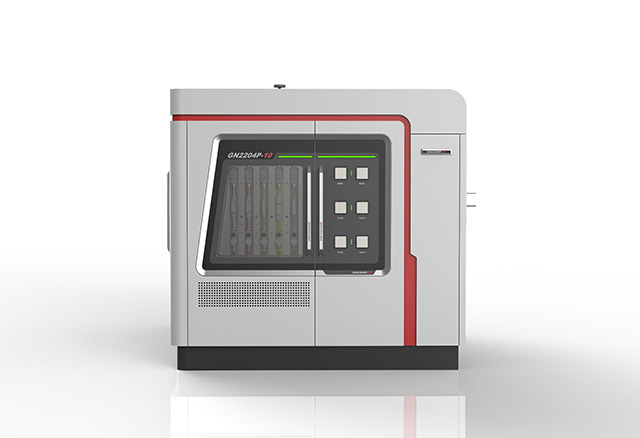

Grand New sinter HIP furnace series are designed to integrate the functions of pressure de-waxing, vacuum de-waxing, vacuum sintering, TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, cooling and etc.
To meet various working process requirements, process gases like Ar, H2, CH4 and N2 could be used to control chamber atmosphere under different pressure and temperature.
Horizontal design for easy loading, unloading and maintenance. Automatic control during whole process.
Technical specification
|
Type |
GN2204P-10-VI |
|
|
Dimension of usable space |
200×200×400 |
|
|
Max. loading weight |
60KG |
|
|
Total power |
100KW |
|
|
Max. designing pressure |
10MPa |
|
|
Max. working pressure |
9.8MPa |
|
|
Max. designing temperature |
1600℃ |
|
|
Max. working temperature |
1550℃ |
|
|
Temperature control |
One zone |
|
|
High temperature uniformity |
≤±5℃ |
|
|
Paraffin as the binder |
Hc deviation |
≤±0.3KA/M（YG6 or YC40） |
|
Com deviation |
≤±0.2%（YG6 or YC40） |
|
|
Max. heating up speed (without loading) |
10℃/min（≤1200℃）； |
|
|
Max. heating up speed |
9℃/min（≤1000℃）； |
|
|
Max. Vacuum |
≤ 2Pa, tested in cold and clean chamber |
|
|
Leak rate |
≤ 2Pa/h, tested in cold and clean chamber |
|
|
Pumping speed |
≤20 min., pumping to 5Pa in cold and clean chamber |
|
|
Wax collecting rate |
≥98﹪ |
|
|
Cooling（with loading） |
From 1450 ℃ to 100℃, 3~4h |
|
|
Weight of furnace body |
≈5T |
|
|
Total weight |
≈9T |
|
